COMPONENTS
| Components | No. of |
|---|---|
| ESP32 | 1 |
| JUMPER WIRES | ∼ 16 |
| TFT ST7789 LCD DISPLAY | 1 |
| BREADBOARD | 1 |
////
CODE
SIMPLE CODE BREAKDOWN
Display Images in a Loop: The microcontroller continually goes through a list of seven pictures (frames) . It starts with the first picture, shows it briefly, and then moves to the next one.
The result is a moving picture.
Main code
Although this is the main code, there has to be .jpeg files that are the substance of the loop.
#include <TFT_eSPI.h>
#include <SPI.h>
#include "image001.h"
#include "image002.h"
#include "image003.h"
#include "image004.h"
#include "image005.h"
#include "image006.h"
#include "image007.h"
TFT_eSPI tft = TFT_eSPI(); // Invoke custom library
void setup(){
Serial.begin(115200);
Serial.println("Start");
tft.init();
tft.setRotation(3);
tft.setSwapBytes(true);
}
void loop(){
tft.pushImage(0, 0, 320, 240, image001);
delay(10);
tft.pushImage(0, 0, 320, 240, image002);
delay(40);
tft.pushImage(0, 0, 320, 240, image003);
delay(40);
tft.pushImage(0, 0, 320, 240, image004);
delay(40);
tft.pushImage(0, 0, 320, 240, image005);
delay(40);
tft.pushImage(0, 0, 320, 240, image006);
delay(40);
tft.pushImage(0, 0, 320, 240, image007);
delay(40);
}
The whole file:
/////
SETUP

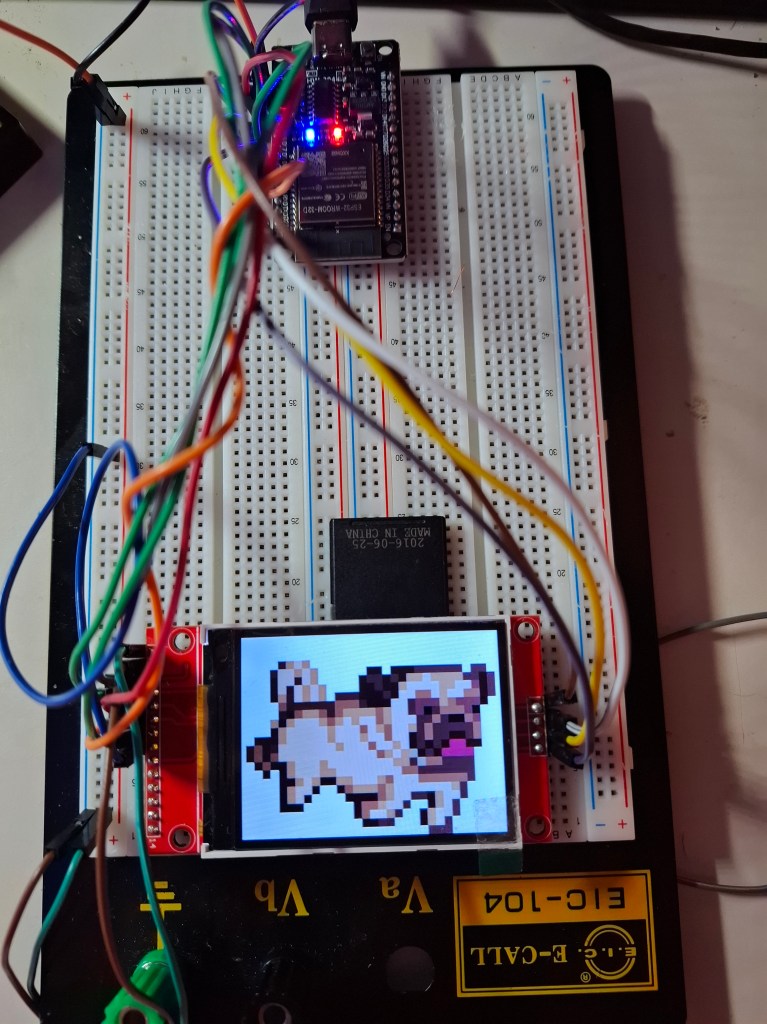

Pins used are:
- 3V3 for LED and VVC,
- GND for GND,
- CS screen for D15,
- CS SD card for D5,
- RESET for D4,
- DC for D2,
- MOSI for D23,
- SCK for D18.
MOSI and SCK pins are SPI protocol, therefore are able to be occupied by multiple devices.
/////
